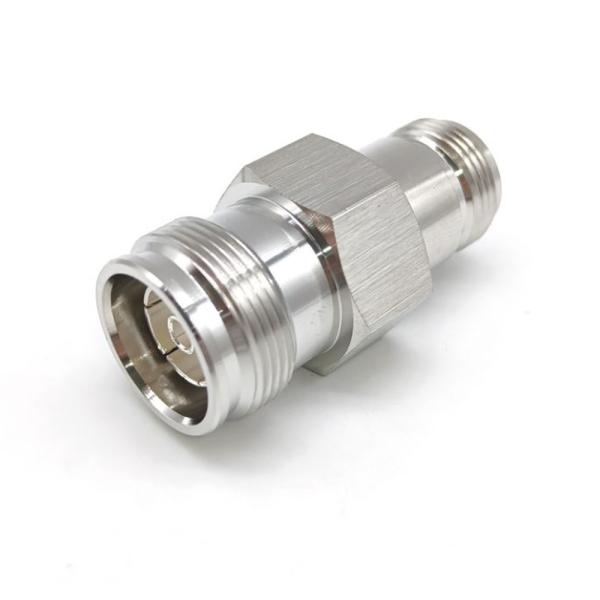

Adapter N female To 4.3-10 female

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Adapter N female To 4310 female
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-ADR-NF-4310F

Certification : RoHS/ISO9000

Place of Origin : China

MOQ : 5pcs

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50pcs per day

Delivery Time : depends on your quantity

Packaging Details : foam+box

Frequency Range : DC-6GHz

Characteristic Impedance : 50

Insertion Loss : ≤0.05

Dielectric Resistance : ≥5000MΩ

Temperature Range : -40℃～+85℃

VSWR : ≤1.10@6G

Dielectric Withstanding Voltage : ≥2500V RMS,50Hz,at sea level

PIM ( @2-tonex20w) : ≤-160dBc

Contact Now

Adapter N female To 4.3-10 female

SPECIFICATION
Dimensions are in millimeters
Interface
According to			IEC 61169-16
Electrical
Characteristic Impedance			50 ohm
Frequency Range			DC-6GHz
VSWR			≤1.10@6G
PIM ( @2-tonex20w)			≤-160dBc
Dielectric Withstanding Voltage			≥2500V RMS,50Hz,at sea level
Dielectric Resistance			≥5000MΩ
Insert Loss			≤0.05dB
Mechanical
Durability			Mating cycles ≥100 cycles
Material and plating
	Material			plating
Body	Brass			Tri-Alloy
Insulator	PTFE			-
Center conductor Barrel	Beryllium Brass			Ag Ni
Environmental
Temperature Range		-40℃～+85℃
Rosh-compliance		Full ROHS compliance
Salt-fog test		96h

Adapter N female To 4.3-10 female

Product Tags:

4.3-10 female Adapter
